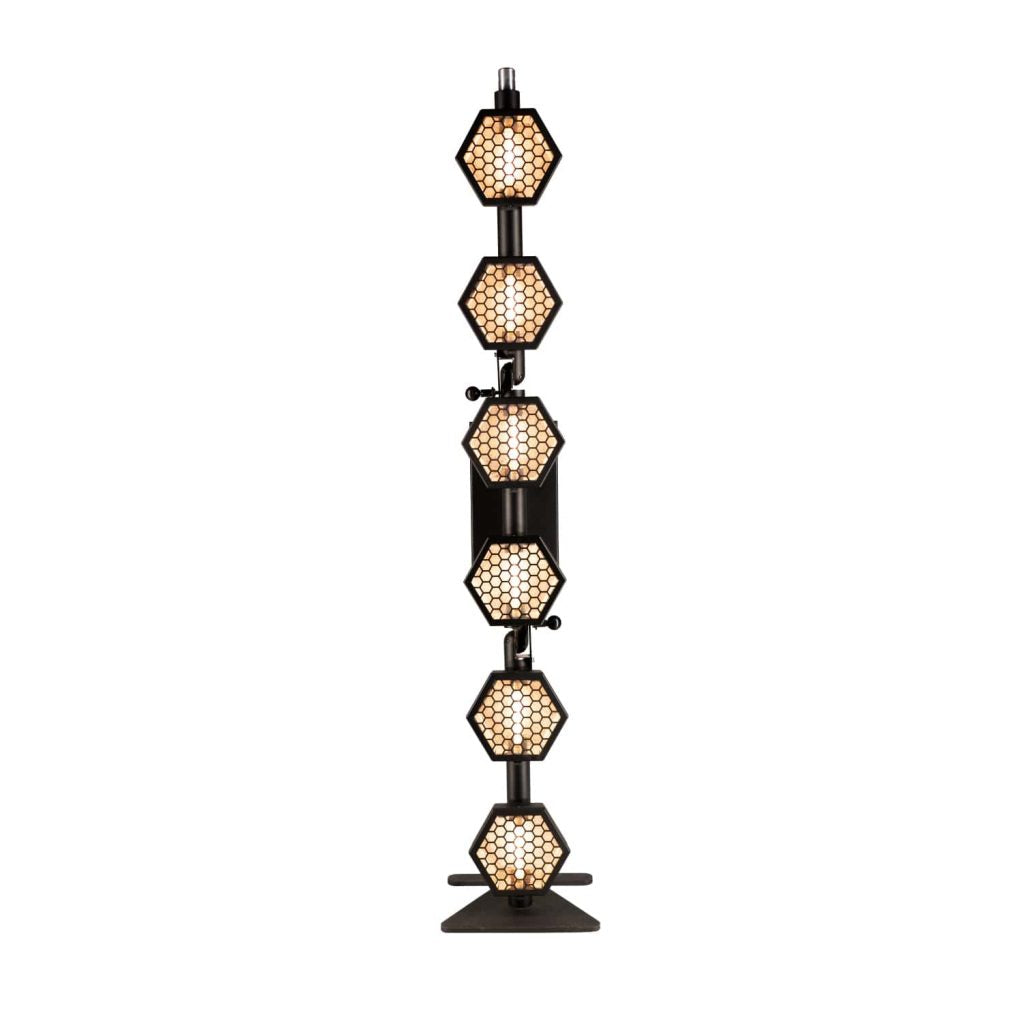

P2 HEXALINE
You will love this tungsten look. Endless flexibility of structure provided by dual hinge construction.
1,380 W
Max power
6 x R7s
Halogen lamps
CRI 100
Color rendering
24 months
Warranty
Features
Dual hinge construction
Endless flexibility of structure.
Halogen light source
6 x R7s 118mm OSRAM Haloline PRO 230V 230 W (high efficiency).
Warm color range
1,600 - 2,900 K with CRI 100.
High reflective reflector
Hammered reflector; silver and gold reflectors available.
Control
6 DMX channels, RDM and W-DMX*.
Flexible rigging
Base, hanging adaptor and clamp holes, any mounting position.
The tungsten look
Endless flexibility of structure provided by dual hinge construction.
At a glance
1,600 - 2,900 K, CRI 100
6 DMX channels, IP20

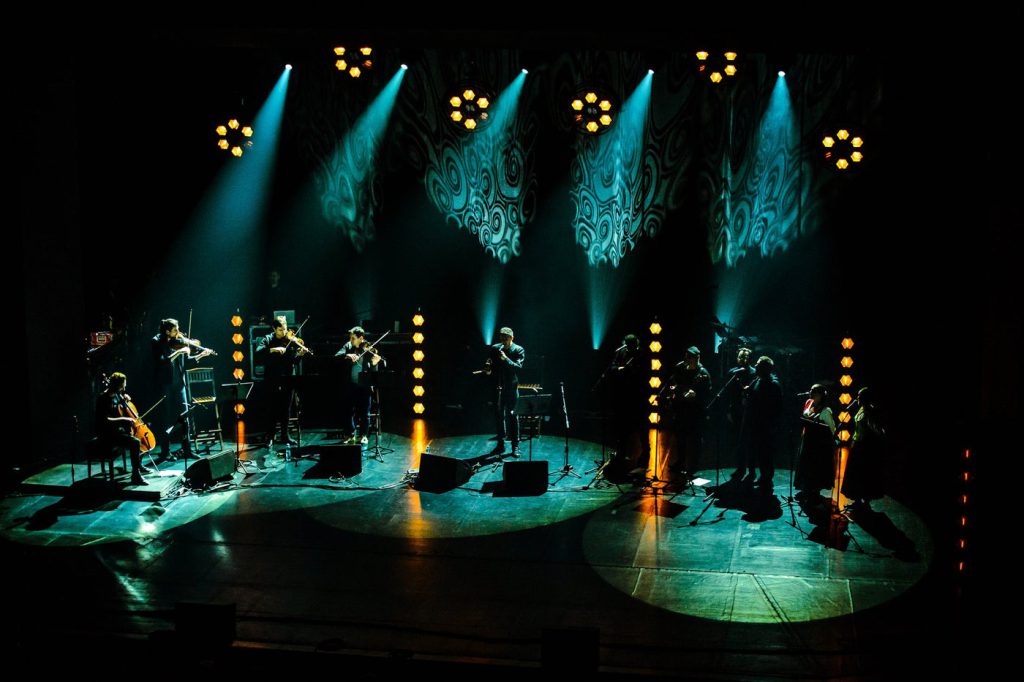

See P2 HEXALINE in Action
Technical specification
Dimensions
172 x 21 x 17 cm (67.7 x 8.3 x 6.7 in)
Weight
12,5 kg (27,5 lbs)
Rigging
Base (included) - 2 x 12 mm (1/2 in) holes for clamp on back | Hanging adaptor (included) with 12 mm (1/2 in) hole for clamp on top
Mounting position
Any
Input voltage
230V 50Hz/60Hz
Power consumption
max 1 380W
Power connector
Neutrik PowerCon TRUE1
Control connector
Neutrik 3 & 5 PIN XLR (in & out)
Light sources
6 x halogen | R7s 118mm OSRAM Haloline PRO 230V 230 W (high efficiency)
Color temperature
1 600 - 2 900K
CRI
100
Optics
High reflective hammered reflector
Control features
6 DMX channels | RDM | W-DMX*
User interface
High-contrast LCD display | Highlighted buttons
Other details
Silver reflector | Gold reflector* | Flight cases (4-row)*
Warranty
24 months
IP rating
IP20
What comes with it
Fixture, 2m power cord (PowerCon, no plug), user manual, 1x spare lamp, base, height adaptor, hanging adaptor, 3x spigots & cotters
Resources
Get the P2 Hexaline - Clearance
The P2 Hexaline is available on clearance from ICD USA.
