ICD / PORTMAN
HEXY

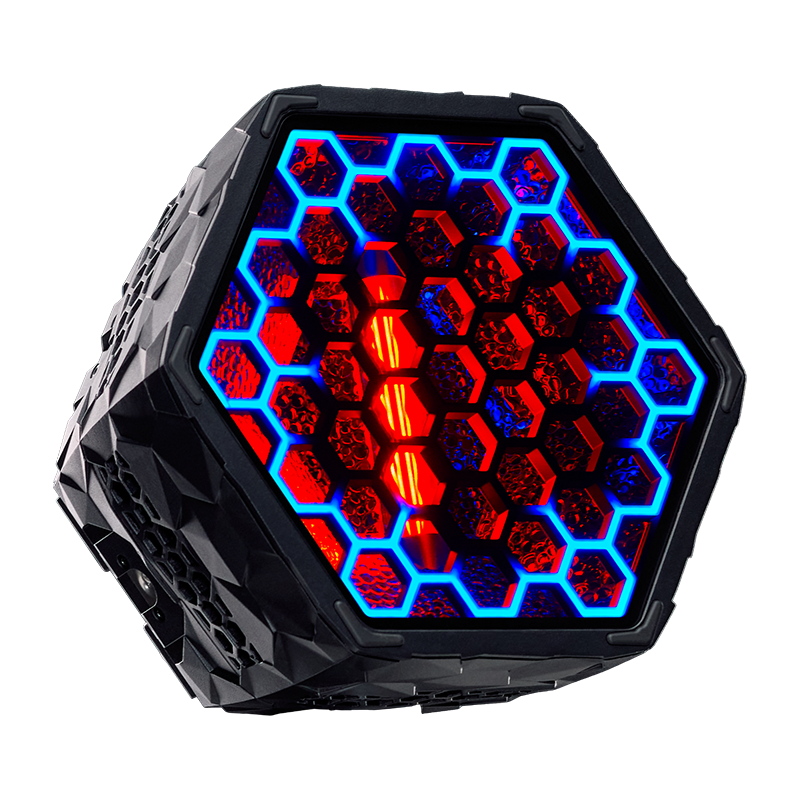

10 years of stagecraft. One definitive hexagon. A single, weather-sealed hexagonal cell with tungsten-emulated haloLED™ FC, pixel-mapped SMESH™ and unprecedented visual depth.
120 W
Power consumption, max
3,500 lm
Main source
IP65
Weather-sealed
24 months
Warranty
Features
haloLED™ FC main source
120W WW + 90W RGB haloLED™ FC, 1600–3200 K, 3,500 lm.
SMESH™ matrix
30W RGB pixel-mapped SMESH™ mesh matrix, 1,000 lm.
3D HEXskin™ housing
Decorative 3D housing on a single hexagonal cell.
fastLINK™ connectors
Quick connectors, fixed and adjustable, for fast assembly.
Flexible control
7 DMX modes (9–94 channels), RDM, macros and influencer/follower mode.
Colour Feedback System™
LCD display and highlighted touch buttons with auto information status.
One definitive hexagon
Ten years after setting a new benchmark for stage emotion, Portman Lights merges tungsten warmth with decorative housing in a single cell.
Built to be seen
94° beam angle
CRI >80

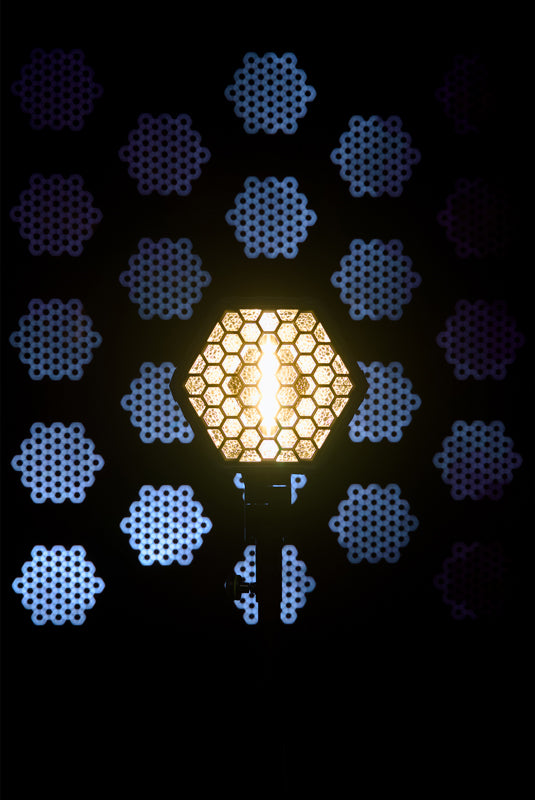

See HEXY in Action
Technical specification
Weight
6.5 kg (14.3 lbs)
Input voltage
100-240 V 50/60 Hz
Power consumption
max 120 W
Power connector
PowerCon TRUE1 (in/thru)
Light sources
Main source: 120W WW + 90W RGB haloLED™ FC | Mesh matrix: 30W RGB SMESH™
Beam angle
94°
Color temperature
1600 – 3200 K (main source) | RGB (mesh matrix)
Total luminous flux
3 500 lm (main source) | 1 000 lm (mesh matrix)
CRI
>80
Control connectors
DMX512 | RDM | WDMX (optional)
Control features
7 DMX modes (9-94 channels) | RDM | Macros | Influencer/follower mode
User interface
LCD display | Highlighted touch buttons | Colour Feedback System™ – fixture's auto information status
Additional features
3D HEXskin™ housing | fastLINK™ quick connectors
IP rating
IP65
Certificates
CE
Intellectual protection
Design patent, utility patent (pending), trademark
Warranty
24 months
What's in the box
Fixture | AC power cord (PowerCon TRUE1, no AC plug) | User manual | Fixed fastLINK™ connector | Adjustable fastLINK™ connector
