MADRIX STELLA

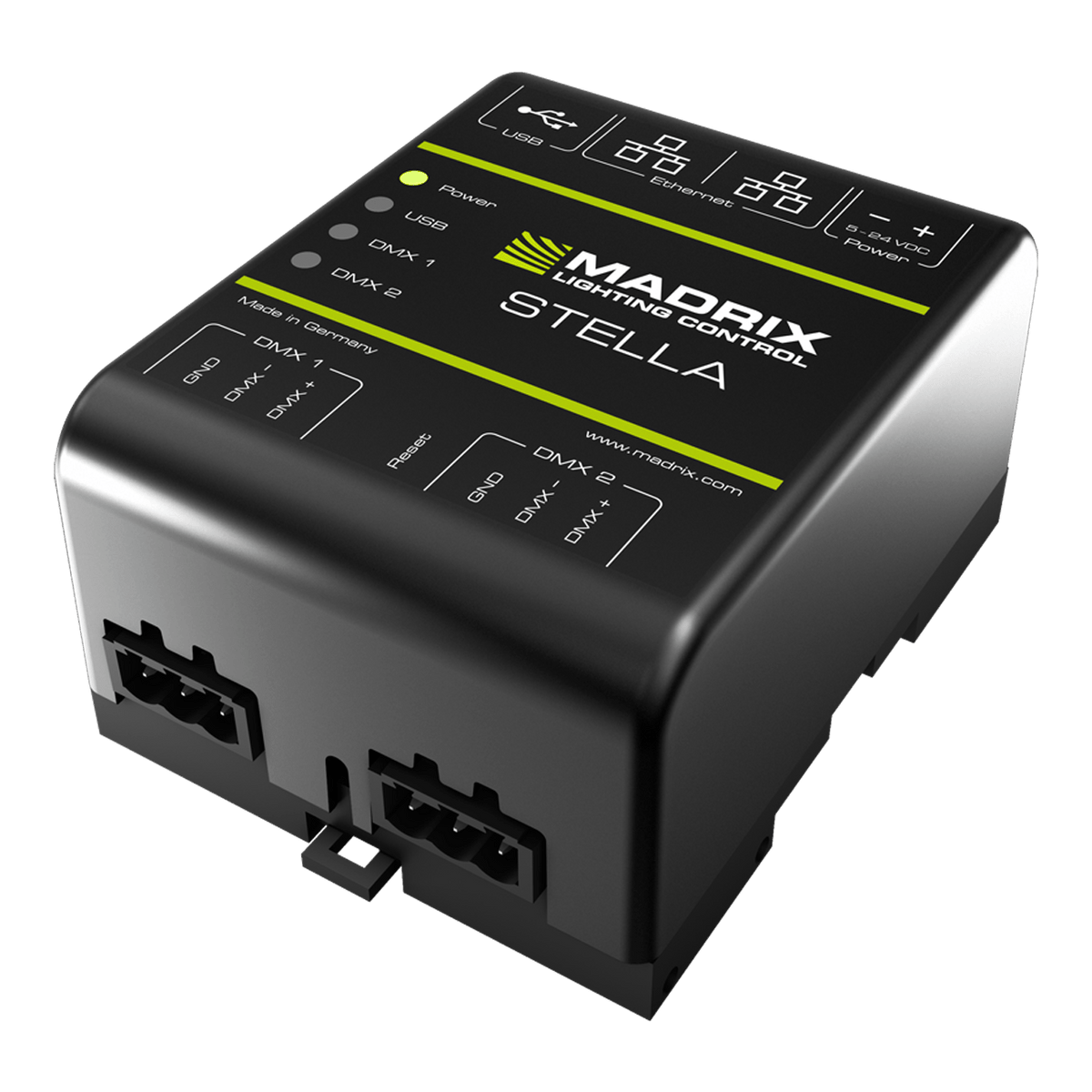

The 2-port network node with RDM support for solid-state projects.
The MADRIX STELLA is a dedicated control interface for DMX512 and Art-Net or Streaming ACN that is designed for high quality and practicability in permanent LED installations.
2
DMX universes in / out
2
Ethernet ports with daisy-chain
RDM
Remote Device Management
5 years
Limited manufacturer's warranty
Features
Art-Net / Streaming ACN / USB
Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network. In addition, simply connect to MADRIX 5 over USB.
Easy Configuration
MADRIX STELLA offers powerful features. Managing the device is still quick and easy. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.
3rd-Party Controllers
MADRIX STELLA complies with official protocol specifications and can be used as a regular node with your other consoles, controllers, or software solutions.
RDM & Daisy-Chain Support
2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together. On top, the device supports the Remote Device Management standard.
Designed For DIN Rails Or Walls
Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.
2 DMX-IN/OUT
Directly connect DMX512 to the two 3-pin screw terminals to distribute 2 DMX universes per unit as input and/or output, eliminating the need for XLR connectors as a result. Simply use several units at the same time for larger projects.
Sync Mode
MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all output ports and across multiple devices to get an optimal image on the LEDs without visual interruptions.
Invaluable Features
The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable. Access and change specific device settings using the built-in web configuration page.
Permanent Installations
Designed for high quality and practicability in permanent LED installations.
DMX512 in, DMX512 out
The MADRIX STELLA is a dedicated control interface for DMX512 and Art-Net or Streaming ACN that is designed for high quality and practicability in permanent LED installations.

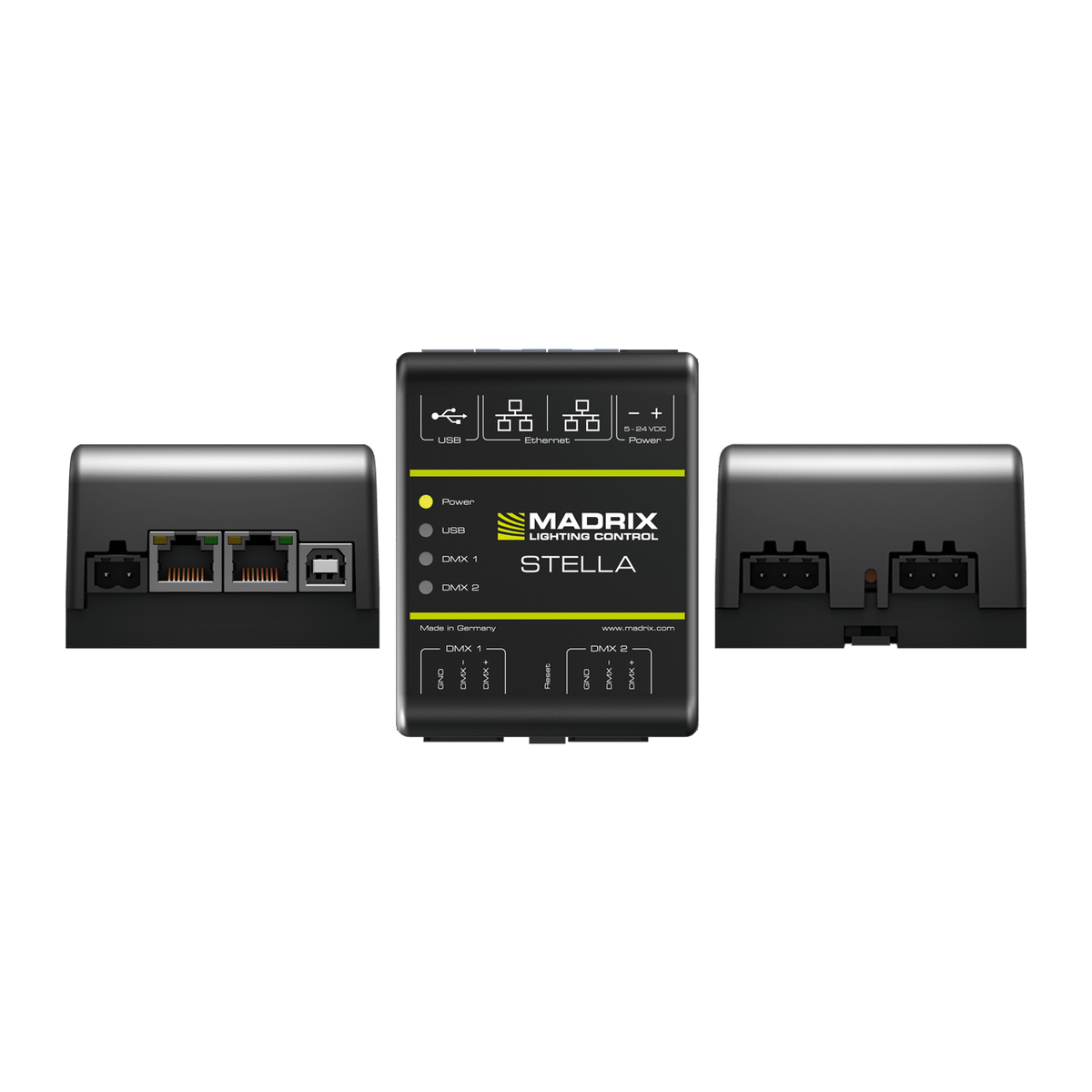

Connectivity
2x DMX-IN/OUT (via pluggable screw terminals)
2x RJ45 Ethernet ports
1x USB port
1x Power (via pluggable screw terminal)
Technical specification
Supply of power
DC 5 V – 24 V
Power consumption
< 1.5 W (300 mA) during normal operation (500 mA max. fused)
Network protocols
Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)
Ethernet
2x RJ45, Auto MDI-X, daisy-chain support, 10/100 MBit/s (Compatible with 1 GBit/s)
Ethernet switch
Lookup Table (ALU) for 1024 unicast MAC addresses
USB
1x port, USB 2.0, type-B female socket
Handling
5 status LEDs (+ 4 network status LEDs)
Case
Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting
Dimensions
90 mm x 70 mm x 46 mm (Length x Width x Height)
Weight
110 g | 132 g incl. screw terminals and wall mounts
Temperature range
-10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage)
Humidity / IP rating
5 % to 80 %, non-condensing (Operating / Storage) · IP20
Certificates / Warranty
CE, EAC, FCC, RoHS | 5 years of limited manufacturer's warranty
