ICD / PORTMAN
P1 RETRO LAMP

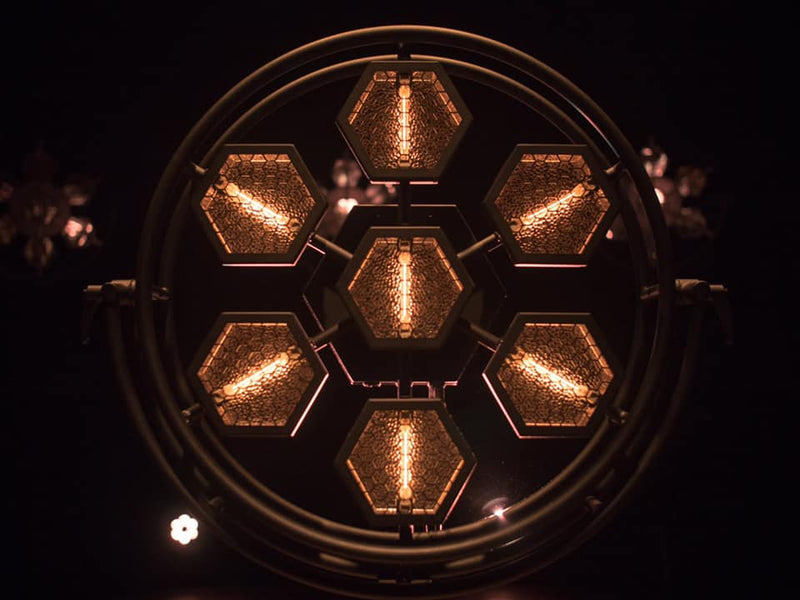

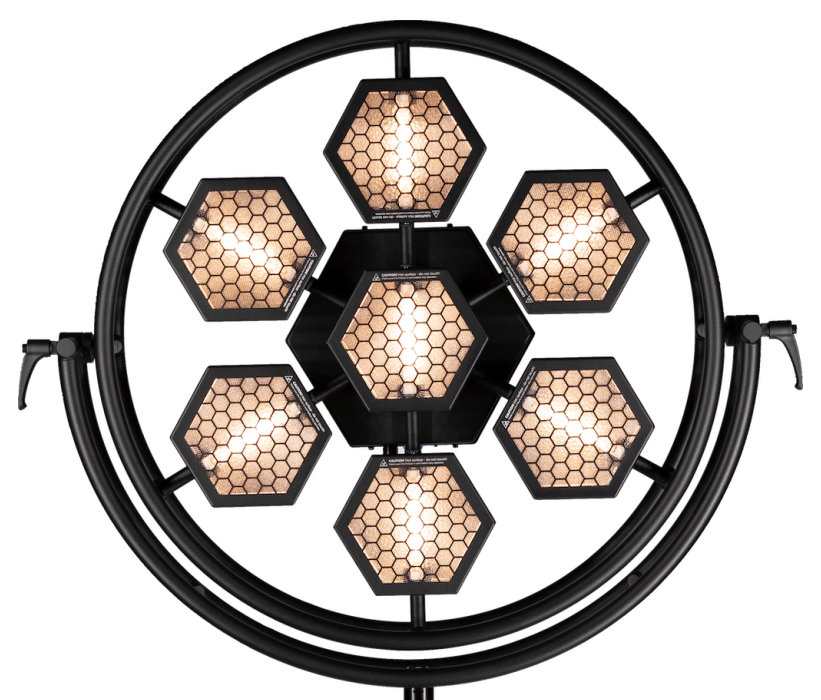

You will love this tungsten look. The first and most well-known fixture by Portman, a 7-cell halogen fixture.
1,610 W
Max power
7 x R7s
Halogen lamps
CRI 100
Color rendering
24 months
Warranty
Features
7-cell fixture
Used on the biggest stages and TV shows, as well as smaller gigs, conferences and weddings.
Halogen light source
7 x R7s 118mm OSRAM Haloline PRO 230V 230 W (high efficiency).
Warm color range
1,600 - 2,900 K with CRI 100.
High reflective reflector
Hammered reflector; silver and gold reflectors available.
Control
7 DMX channels, RDM and W-DMX*.
Easy rigging
12 mm (1/2 in) hole for spigot or clamp, any mounting position.
The tungsten look
The first and most well-known fixture by Portman, built around seven halogen cells.
At a glance
1,600 - 2,900 K, CRI 100
7 DMX channels, IP20
See P1 RETRO LAMP in Action
Technical specification
Dimensions
85 x 99 x 17 cm (33.5 x 39 x 6.7 in)
Weight
12,5 kg (27,5 lbs)
Rigging
12 mm (1/2 in) hole for spigot or clamp
Mounting position
Any
Input voltage
230V 50Hz/60Hz
Power consumption
max 1 610W
Power connector
Neutrik PowerCon
Control connector
Neutrik 3 & 5 PIN XLR (in & out)
Light sources
7 x halogen | R7s 118mm OSRAM Haloline PRO 230V 230 W (high efficiency)
Color temperature
1 600 - 2 900K
CRI
100
Optics
High reflective hammered reflector
Control features
7 DMX channels | RDM | W-DMX*
User interface
High-contrast LCD display | Highlighted buttons
Other details
Silver reflector | Gold reflector* | Flight cases (2-, 3-, 4-row)
Warranty
24 months
IP rating
IP20
What comes with it
Fixture, 2m power cord (PowerCon, no plug), user manual, 1x spare lamp
Resources
Get the P1 Retro Lamp
Find the P1 Retro Lamp in the ICD USA Portman Lights collection.
