ICD / PORTMAN

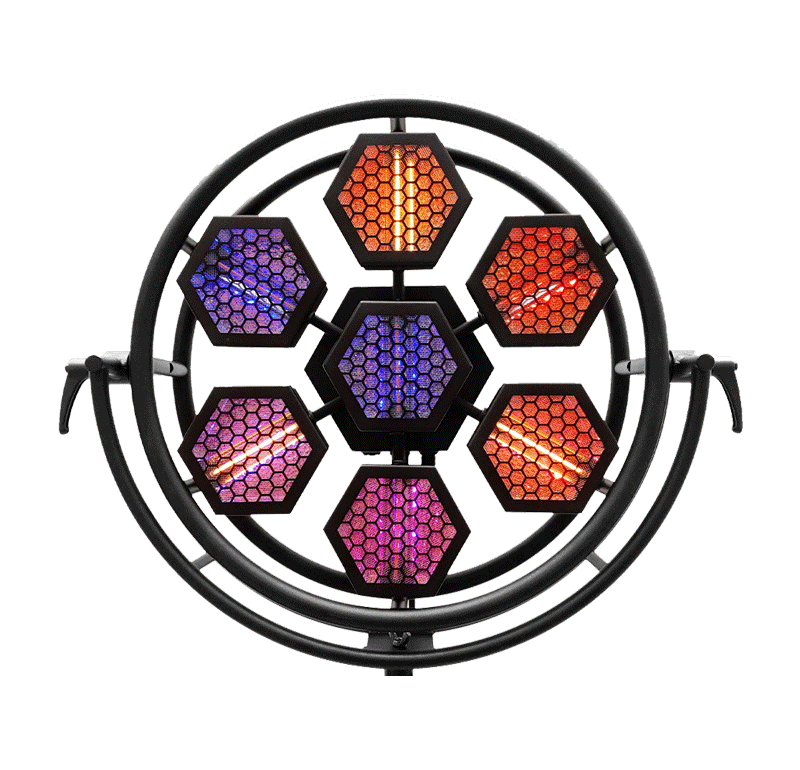

P1 MINI LED
Play with tungsten light, play with colors. Keep the tungsten look and add RGBW color to your own specification.
95 W
Max power
1,800 K
Tungsten emulation
CRI >90
Color rendering
24 months
Warranty
Features
Tungsten look
7 x LED filament emulating tungsten light.
RGBW color
7 x RGBW Glow LEDs for a wide range of colors.
High reflective reflector
Hammered reflector; gold and silver reflectors available.
Flexible control
5 DMX modes (19-50 channels), RDM, macros and W-DMX.
Easy rigging
12 mm (1/2 in) hole for spigot or clamp, any mounting position.
Clear interface
High-contrast LCD display with highlighted buttons.
Tungsten warmth, full color
The warm white and RGBW LEDs of the P1 Mini LED create a wide range of colors while keeping the tungsten look.
At a glance
1,800 K warm white, RGBW
Max 95 W, IP20

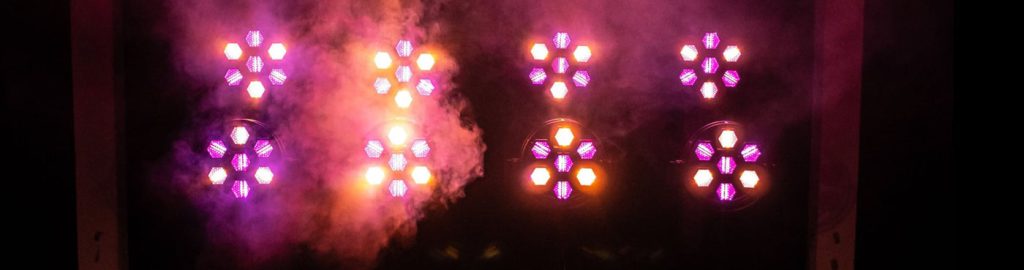

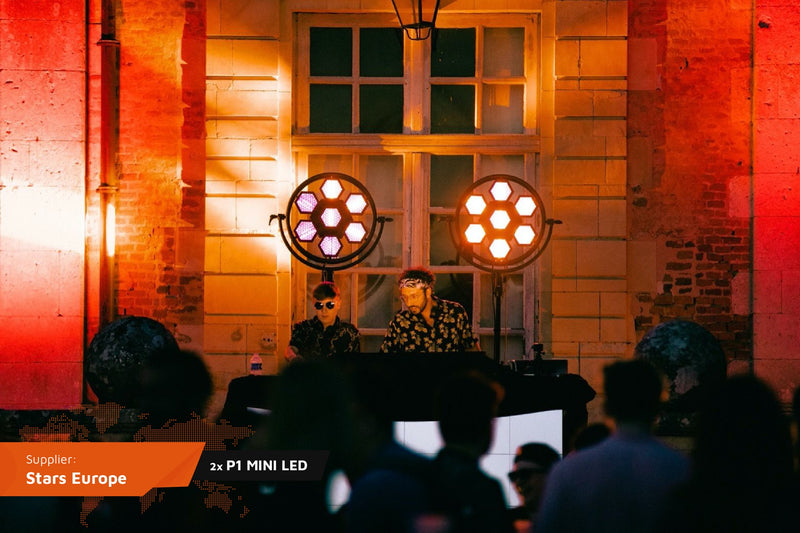

See P1 MINI LED in Action
Technical specification
Dimensions
63 x 76 x 17 cm (24.8 x 30 x 6.7 in)
Weight
8 kg (17.5 lbs)
Rigging
12 mm (1/2 in) hole for spigot or clamp
Mounting position
Any
Input voltage
110 - 230V 50Hz/60Hz
Power consumption
max 95W
Power connector
Neutrik PowerCon TRUE1 power through
Control connector
Neutrik 5 PIN XLR (in & out)
Light sources
7 x LED filament (tungsten emulation) | 7 x RGBW Glow
Color temperature
1 800K | RGBW
CRI
>90
Optics
High reflective hammered reflector
Control features
5 DMX modes (19-50 DMX channels) | RDM | Macros | W-DMX*
User interface
High-contrast LCD display | Highlighted buttons
Other details
Gold reflector | Silver reflector* | Flight cases (2-, 3-, 4-row)*
Warranty
24 months
IP rating
IP20
What comes with it
Fixture, 2m power cord (PowerCon TRUE1, no plug), user manual
Resources
Get the P1 Mini LED
Find the P1 Mini LED in the ICD USA Portman Lights collection.
