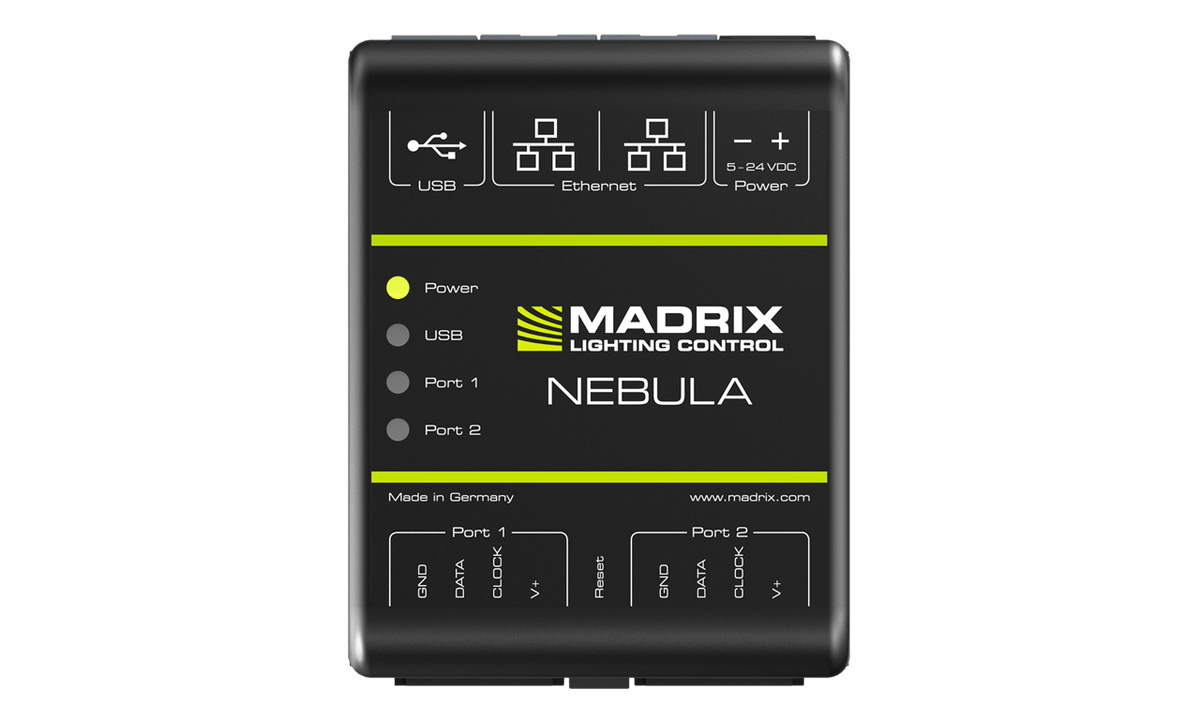

MADRIX NEBULA
The versatile LED pixel-tape driver to directly control a wide range of digital LEDs.
The MADRIX NEBULA directly connects to your LED pixels. This advanced SPI decoder receives control data over Ethernet network or USB and is built to provide excellent image quality.
24 MHz
Signal frequency
12
Universes of output
2,048
RGB pixels per device
5 years
Limited manufacturer's warranty
Features
SPI Converter & Direct Connection
Directly connect to a wide range of supported LEDs via two 4-pin screw terminals. A signal frequency of up to 24 MHz is available. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.
Art-Net / Streaming ACN / USB
Network data is directly converted to SPI without the need for an additional interface. Reliably distribute data from any compatible software or hardware controller. In addition, simply connect to MADRIX 5 over USB.

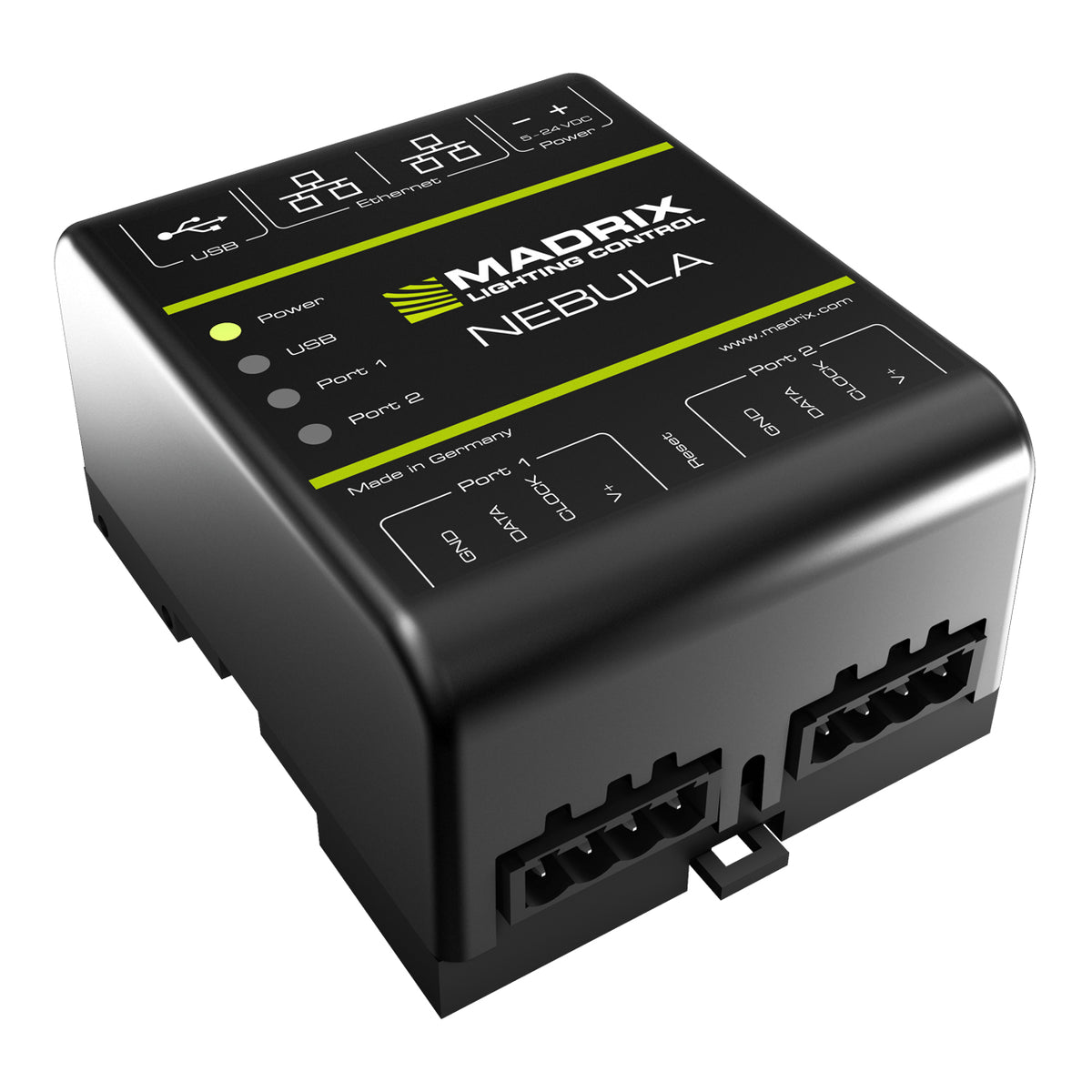

Designed For DIN Rails Or Walls
Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.
Sync Mode & Daisy-Chain Support
MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all ports and across devices to get an optimal image on the LEDs without visual interruptions. 2 Ethernet ports allow linearly daisy-chaining several devices together.
Invaluable Features
The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable. Access and change specific device settings using the built-in web configuration page.
Quality Output Of 12 Universes
Each device drives up to 2,048 RGB pixels while ensuring responsive delivery of high-quality signals to each individual LED. You can choose the output protocol separately for each of the two ports.
Built to connect straight to your pixels
The MADRIX NEBULA directly connects to your LED pixels. This advanced SPI decoder receives control data over Ethernet network or USB.
Connectivity
2x OUT (via pluggable screw terminals)
2x RJ45 Ethernet ports
1x USB port
1x Power (via pluggable screw terminal)
Technical specification
Supply of power
DC 5 V – 24 V
Power consumption
< 1.5 W (300 mA) during normal operation (500 mA max. fused)
Network protocols
Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)
Data output
8x 512 channels SPI TTL (Maximum output per port: 680 RGB LEDs / 512 RGBW LEDs / 2048 1-channel LEDs)
Supported LEDs
APA101 / APA102 / APA104 / APA106 / GS8206 / GS8207 / GS8208 / GW6201 / See additional LEDs at the MADRIX website
Ports
2x ports (via 2x 4-pin, pluggable screw terminals)
Ethernet
2x RJ45, Auto MDI-X, daisy-chain support, 10/100 MBit/s (Compatible with 1 GBit/s)
Ethernet switch
Lookup Table (ALU) for 1024 unicast MAC addresses
USB
1x port, USB 2.0, type-B female socket
Handling
5 status LEDs (+ 4 network status LEDs)
Case
Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting
Dimensions
90 mm x 70 mm x 46 mm (Length x Width x Height)
Weight
110 g | 132 g incl. screw terminals and wall mounts
Temperature / Humidity
-10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage) · 5 % to 80 %, non-condensing · IP20
Certificates / Warranty
CE, EAC, FCC, RoHS | 5 years of limited manufacturer's warranty
