ICD / PORTMAN
MANTIS

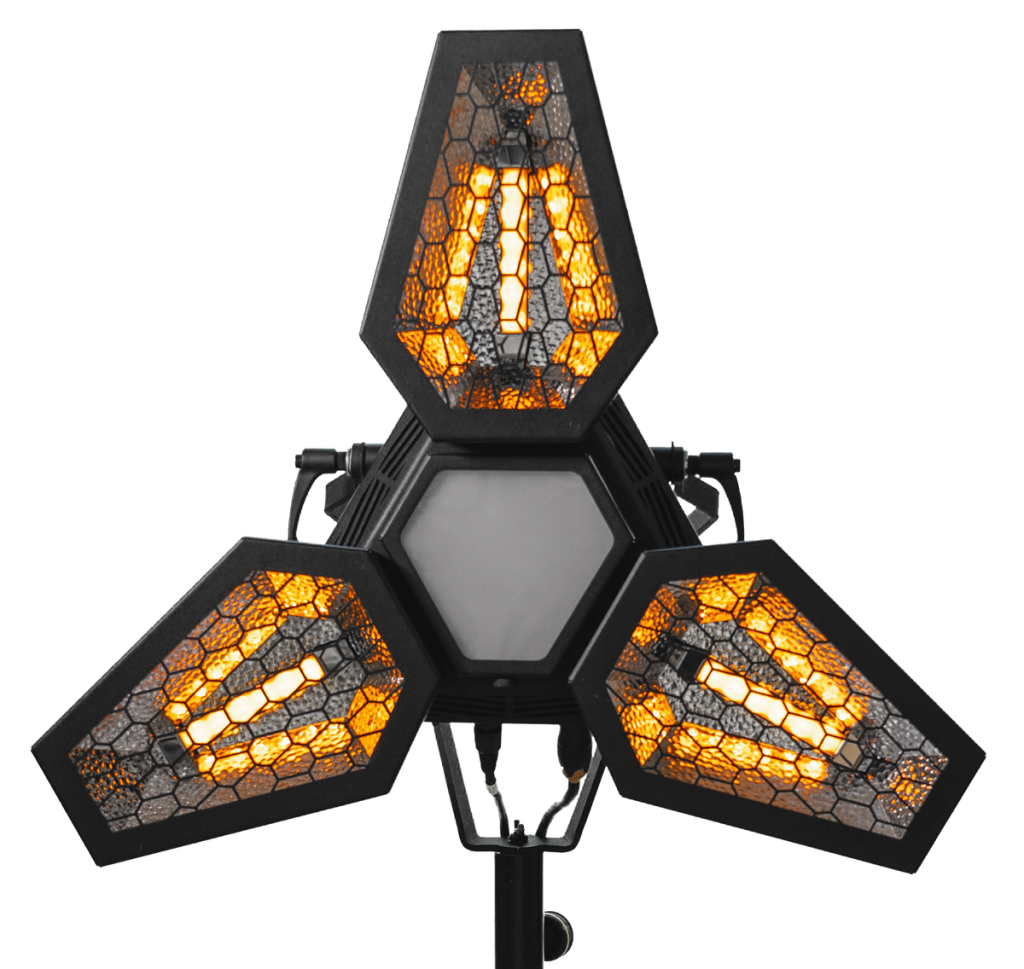

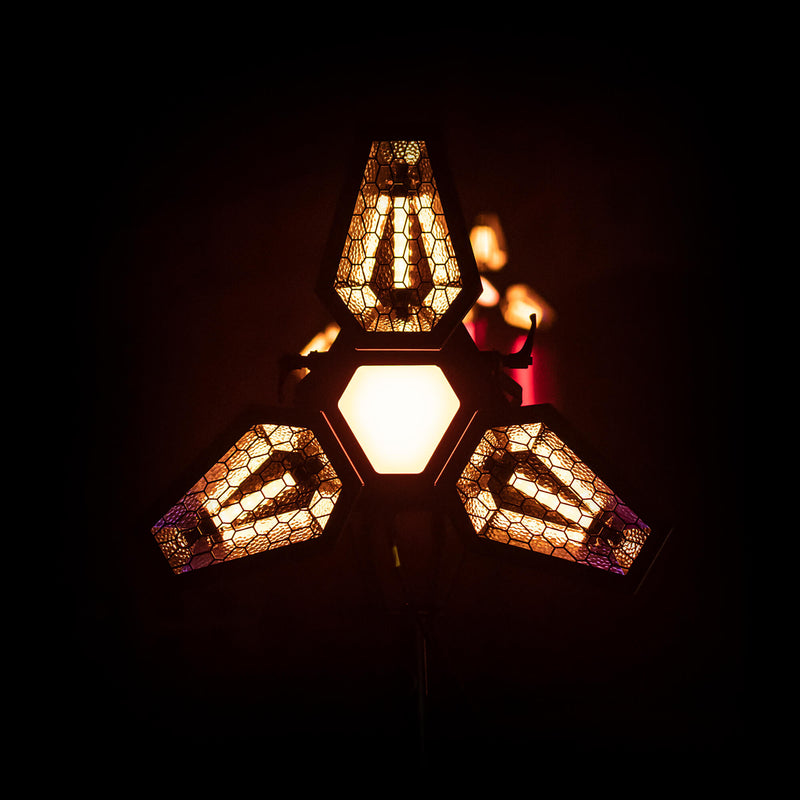

The next step for decorative stage lighting based on LEDs. A completely new, unique design with strong dim-to-warm light sources and RGBW glow.
250 W
Power consumption, max
CRI >90
Colour rendering
8 kg
17.5 lbs
24 months
Warranty
Features
Dim-to-warm sources
3 x LED dim to warm white, 1600–3200 K.
RGBW glow
3 x RGBW Glow plus 1 x RGBW centre box.
Hammered reflector
High reflective hammered reflector optics.
Flexible control
6 DMX modes (21–43 channels), RDM, macros and W-DMX*.
Simple rigging
13 mm (1/2 in) hole for spigot or clamp, any mounting position.
High-contrast display
LCD display with highlighted buttons.
Made for any stage
Works in a small studio and on a big festival stage, and suits any mood of the event.
At a glance
65 x 65 x 17 cm (25.5 x 25.5 x 6.7 in)
PowerCon TRUE1 power through

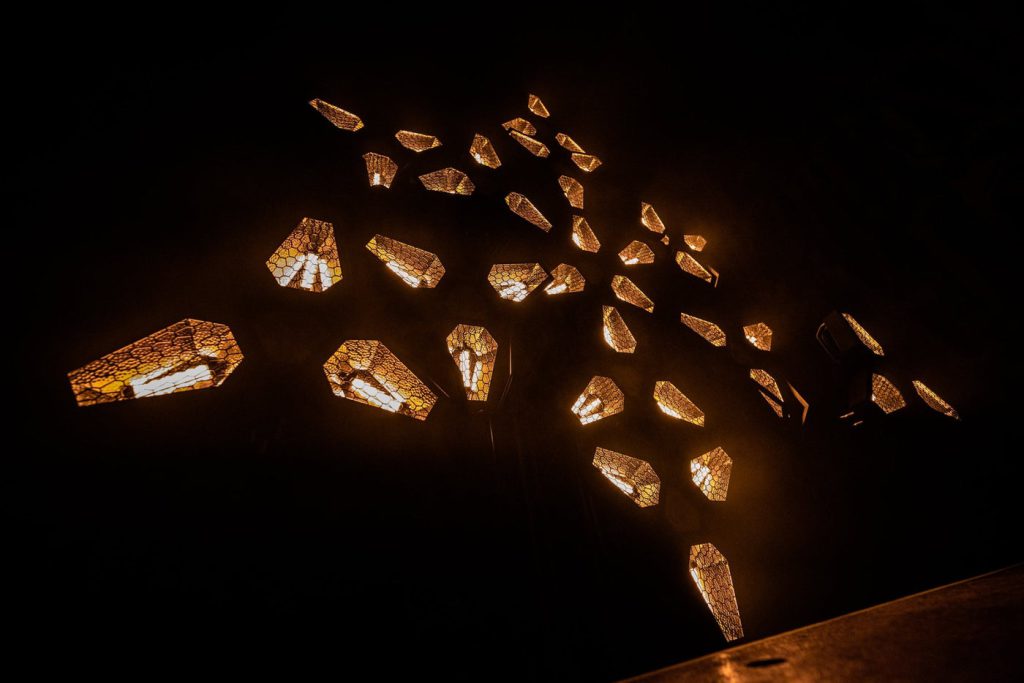

See MANTIS in Action
Technical specification
Dimensions
65 x 65 x 17 cm (25.5 x 25.5 x 6.7 in)
Weight
8 kg (17.5 lbs)
Rigging
13 mm (1/2 in) hole for spigot or clamp
Mounting position
Any
Input voltage
100-240V 50Hz/60Hz
Power consumption
max 250W
Power connector
Neutrik PowerCon TRUE1 power through
Control connector
Neutrik 5 PIN XLR (in & out)
Light sources
3 x LED dim to warm white | 3 x RGBW Glow | 1 x RGBW Center box
Color temperature
1600-3200K | RGBW
CRI
>90
Optics
High reflective hammered reflector
Control features
6 DMX modes (21-43 DMX channels) | RDM | Macros | W-DMX*
User interface
High-contrast LCD display | Highlighted buttons
Other details
Flight cases*
Warranty
24 months
IP rating
IP20
What's in the box
Fixture | 2 m power cord (PowerCon TRUE1, no plug) | User manual
