MADRIX AURA
The advanced lighting-control recorder and stand-alone playback unit.
The MADRIX AURA is the central stand-alone controller for simple recording and large-scale pixel mapping. It redefines what is possible in a compact control unit with exceptional performance.
2 / 8 / 32
Universes per device
8
On-device control buttons
IP20
DIN-rail or wall mounting
5 years
Limited manufacturer's warranty
Features
Stand-Alone Playback
Independently run the most sophisticated light shows from this energy-efficient playback unit via Art-Net or Streaming ACN. Easily control up to 2, 8, or 32 universes per device.
Central Hub
Simply connect compatible MADRIX hardware interfaces or third-party nodes to provide the correct output for your lighting fixtures.
Master-Slave Synchronization & Scalability
Manage large projects simply by connecting several units. The entire group is automatically synchronized across all DMX universes for flawless and uninterrupted playback.
Live Control

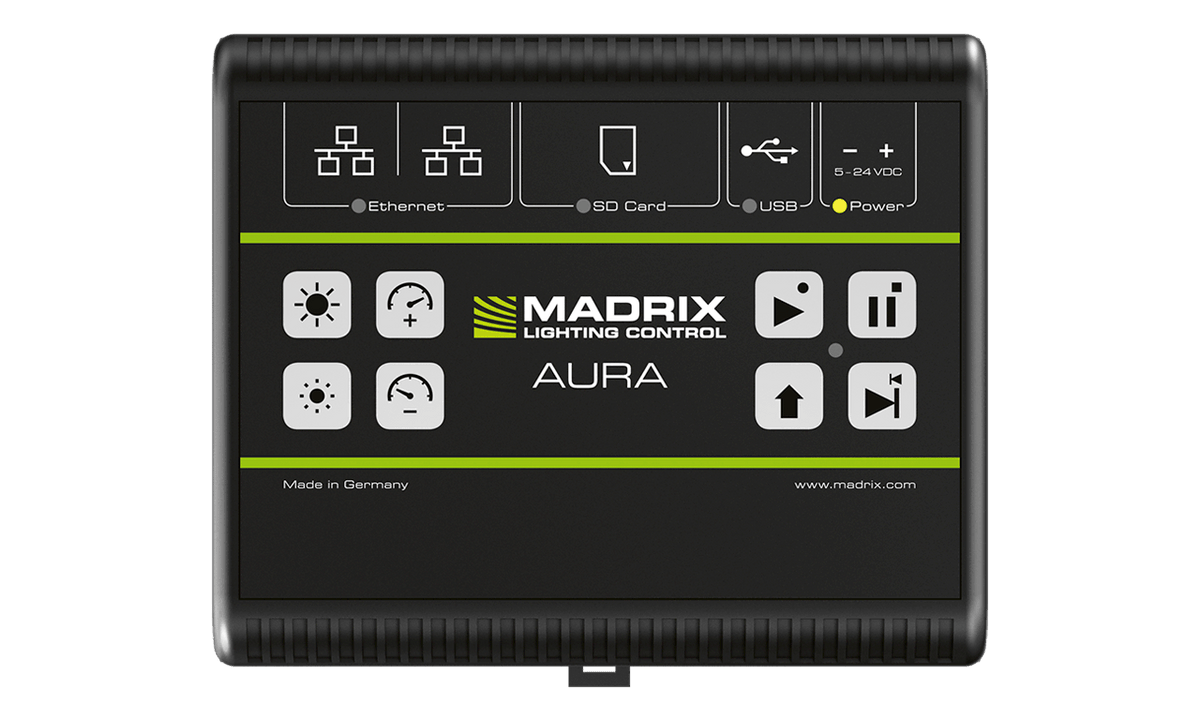

Encased in a non-conductive design for DIN rails or wall mounting, 8 on-device buttons allow for quick playback and recording control. You can also directly adjust the overall speed and intensity.
Live Recording
Record any Art-Net or Streaming ACN network stream onto the inserted memory card. Recording a beautiful light show with MADRIX 5 is as easy as pressing record and play.
Time-Controlled Shows
Run scenes automatically with the help of the internal clock as well as the available sunrise and sunset timers.
Web Configuration
Use the built-in web configuration page to access and change specific device settings, such as the important IP address, universes, playlist settings, and much more.
Remote Control
Trigger MADRIX AURA via user-definable HTTP commands and the built-in web server or use Art-Net/sACN. You can even add MADRIX ORION for interactive installations.
Connectivity
2x RJ45 Ethernet ports, 1x SD-Card slot, 1x USB port and 1x Power via pluggable screw terminal.

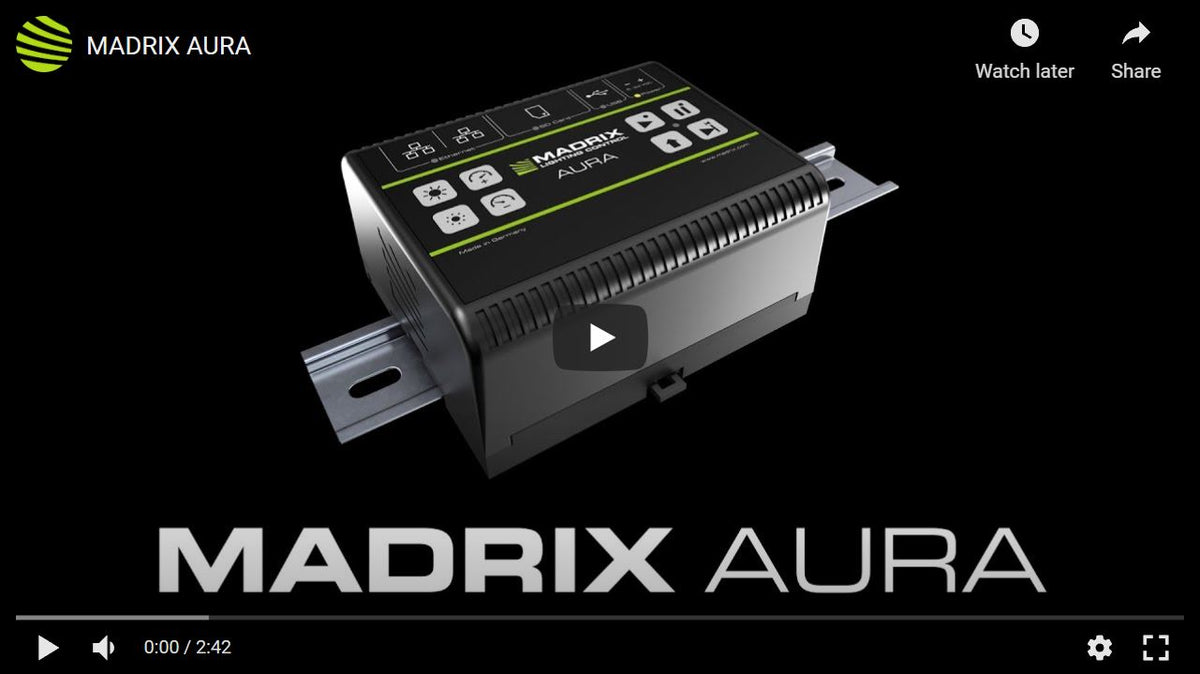

See the AURA in action
The MADRIX AURA is the central stand-alone controller for simple recording and large-scale pixel mapping.
Connectivity
2x RJ45 Ethernet ports
1x SD-Card slot
1x USB port
1x Power (via pluggable screw terminal)
Technical specification
Supply of power
DC 5 V – 24 V
Power consumption
< 1.5 W (300 mA) during normal operation (500 mA max. fused)
Network protocols
Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)
RDM role
Acts on commands and replies to requests with data via ArtRdm (RDM Responder)
Output
2x / 8x / 32x 512 DMX channels output over Ethernet network
Recording input
2x / 8x / 32x 512 DMX channels input over Ethernet network
Remote-control input
8x 512 DMX channels received over Ethernet network
SD-Card slot
Supports SD, SDHC, and SDXC cards (Tested up to 64 GB)
Ethernet
2x RJ45, Auto MDI-X, daisy-chain support, 10/100/1000 MBit/s
Ethernet switch
Lookup Table (ALU) for 4096 unicast MAC addresses
USB
1x port, USB 2.0, type-B female socket
Handling
8 control buttons, 6 status LEDs (+ 4 network status LEDs)
Case

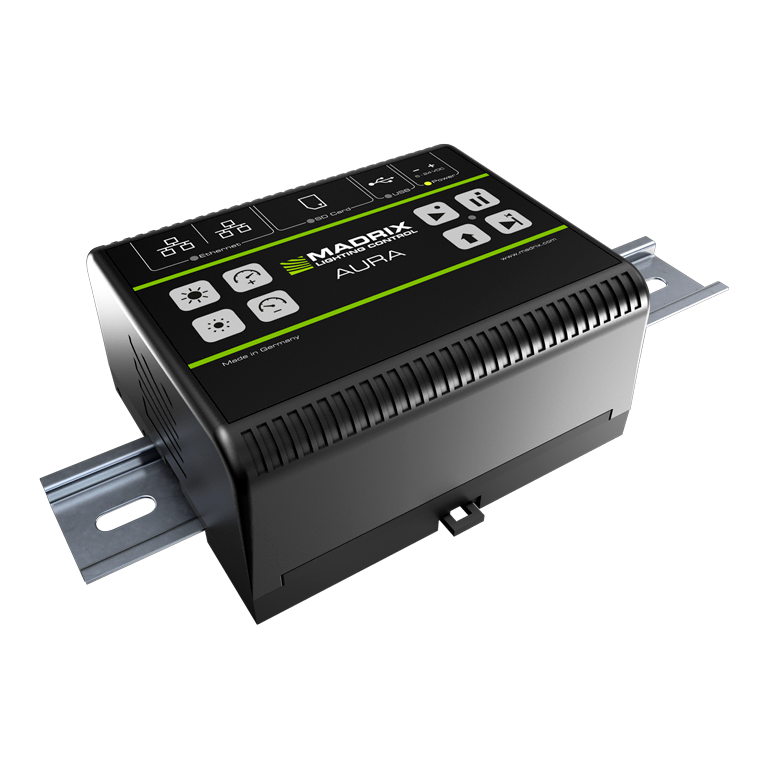

Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting
Dimensions
86 mm x 105 mm x 49 mm (Length x Width x Height)
Weight
148 g | 154 g incl. screw terminal, SD card, and wall mounts
Temperature range
-10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage)
Humidity / IP rating
5 % to 80 %, non-condensing (Operating / Storage) | IP20
Certificates / Warranty
CE, EAC, FCC, RoHS | 5 years of limited manufacturer's warranty
