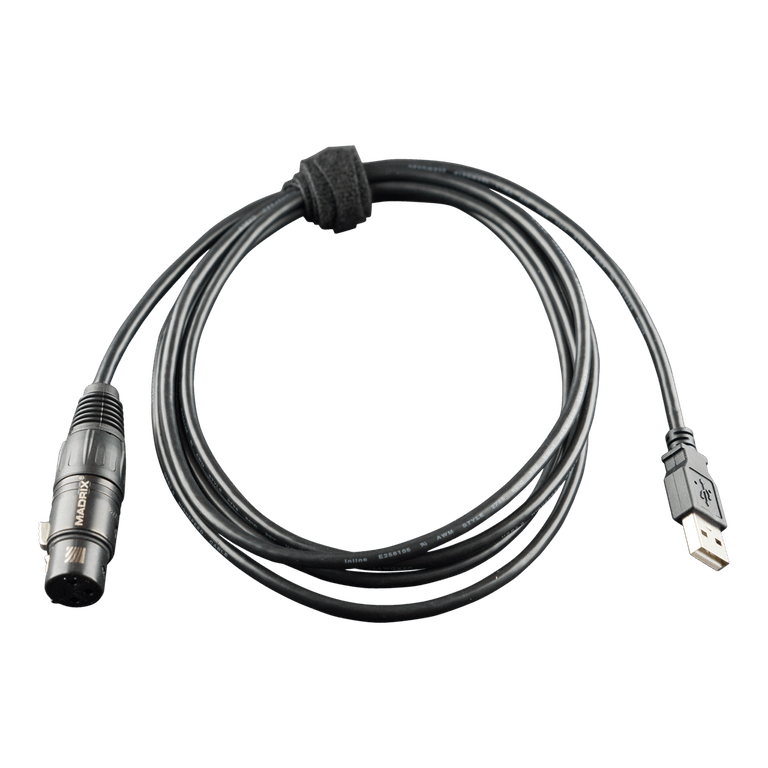

MADRIX USB SMPTE
Simply add time code synchronization to your projects.
SMPTE
Time code input
3-pin XLR
Female NEUTRIK connector
USB 2.0
Plug and Play, powered over USB
5 years
Limited manufacturer's warranty
Features
MADRIX I/O
MADRIX I/O products are supplementary input and output devices. External equipment brings additional automation processes and interaction to any LED project using MADRIX 5.
Standard Connectors
Data is received via the 3-pin, female XLR connector. The device can simply be connected to any USB 2.0 port.
SMPTE Time Code
This input device allows you to effortlessly use SMPTE time code for time synchronization across your equipment and multiple devices.
Example Of Use
Synchronize the automated playback of scenes and effects in MADRIX 5 by using the Cue List.
Connectivity
Time code in over XLR, powered and connected over USB.
Ports & sockets
1x IN (3-pin XLR)
1x USB port
Technical specification
Supply of power
DC 5 V, 500 mA, Power over USB
Power consumption
~ 50 mA during normal operation
Plug
3-pin, XLR, female, NEUTRIK
USB
1x port, USB 2.0, type-A male plug, Plug and Play, 2 m cable
Weight
110 g
Temperature range
10 °C to 50 °C (Operating) | -10 °C to 70 °C (Storage)
Relative humidity
5 % to 80 %, non-condensing (Operating / Storage)
IP rating
IP20
Certificates / warranty
CE, EAC, RoHS | 5 years of limited manufacturer's warranty
