ICD / PORTMAN
OMNIRAY
The world's first hybrid utility fixture. Par, blinder, narrow beam and eye candy in one weather-sealed bar.
8,000 lm
Total luminous flux
CRI >95
Calibrated mode
IP65
Weather-sealed
24 months
Warranty
Features
Hybrid design
Par, blinder, narrow beam and eye candy in a single fixture.
Dual light sources
Main source 440W RGBWLA plus 40W RGBW narrow source.
Magnetic optics
Diffuser 20°, diffuser 10×60° (elliptical) and Micro Fresnel F220.
OMNICLE™ cover
Decorative magnetic cover included in the box.
Flexible control
8 DMX modes (8–28 Ch), RDM, macros, influencer/follower, optional CRMX.
Colour Feedback System™
OLED display and highlighted touch buttons with auto information status.
One fixture, many roles
Wide 90° main source and a 3.8° narrow source, with magnetic optics that change the look in seconds.
At a glance
90° main / 3.8° narrow beam
2000–6500 K main source

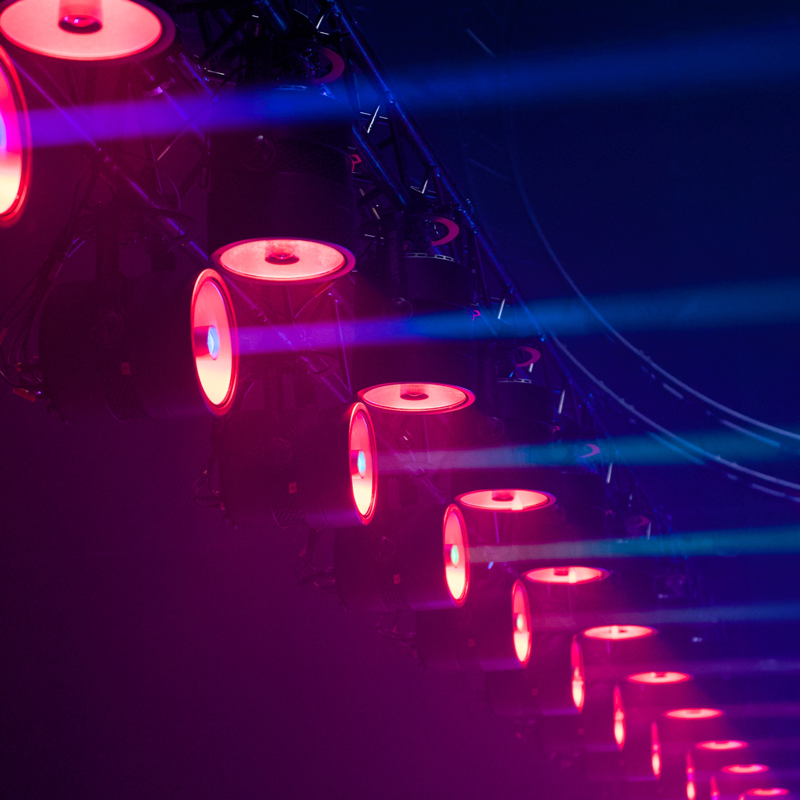

See OMNIRAY in Action
Technical specification
Dimensions
118cm x 15cm x 18cm (46.5in x 5.9in x 7in)
Weight
14 kg (30.87 lbs)
Rigging
Omega bracket with 1/4 fast locks
Input voltage
100-240V 50Hz/60Hz
Power consumption
max 450W
Power connector
PowerCon TRUE1 (in/thru)
Light sources
Main source: 440W RGBWLA | Narrow source: 40W RGBW
Beam angle
90° (main source) | 3.8° (narrow source)
Color temperature
2000–6500K (main source) | 6000K (narrow source)
Total luminous flux
8,000 lm
CRI
>95 (calibrated mode)
Optics (magnetic)
Diffuser 20º | Diffuser 10×60º (elliptical) | Micro Fresnel F220
Control connectors
5 PIN XLR (DMX/RDM in & out) | USB-A (firmware updates)
Control features
8 DMX modes (8–28 Ch) | RDM | Macros | Influencer/follower mode | CRMX (optional module)
User interface
OLED display | Highlighted touch buttons | Colour Feedback System™ – fixture's auto information status
IP rating
IP65
Certificates
CE, ROHS, ETL, UL, UKCA
Intellectual protection
Design patent, utility patent (pending), trademark
Warranty
24 months
What's in the box
Fixture | AC power cord (PowerCon TRUE1, no AC plug) | User manual | OMNICLE™ decorative magnetic cover
Additional accessories
CRMX module | Flight case (4-units) | Soft case bag (1-unit)
