ICD / PORTMAN

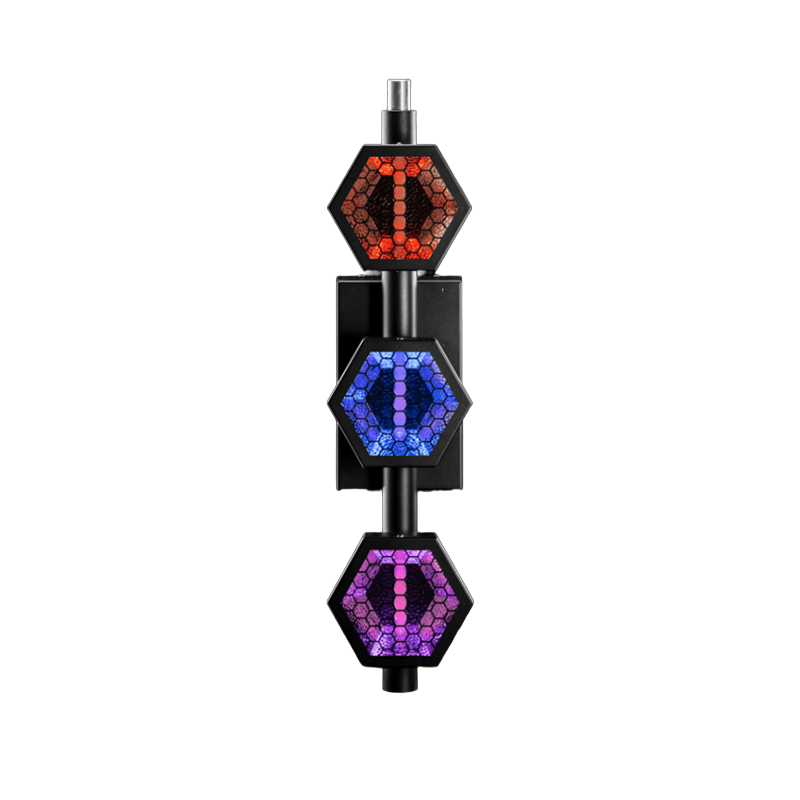

EVO ELEMENT
Super modular stage fixture, fully compatible with the P2 EVO™. Full halogen source emulation with RGBW glow for each pixel.
240 W
Power consumption, max
1600–3200K
Color temperature
CRI >90
Halogen emulation
24 months
Warranty
Features
haloLED™ sources
3 × haloLED™ (3 × 60W) with full halogen source emulation.
RGBW glow
3 × RGBW glow (3 × 12W), one for each pixel.
P2 EVO™ compatible
Same pixel sizes, light sources and accessories. 2 × EVO ELEMENT™ = 1 × P2 EVO™ in height.
E-CONN™ ready
Optional 4-way connector for building triangles, squares, hexagons and octagons.
Flexible control
6 DMX modes (9–39 Ch), RDM and macros, with optional W-DMX module.
Optics and display
High reflective hammered reflector, opal diffuser and a high-contrast LCD display with highlighted buttons.
Build without limits
Combine EVO ELEMENT™ fixtures freely with the P2 EVO™ and build structures fast with the E-CONN™ connector.

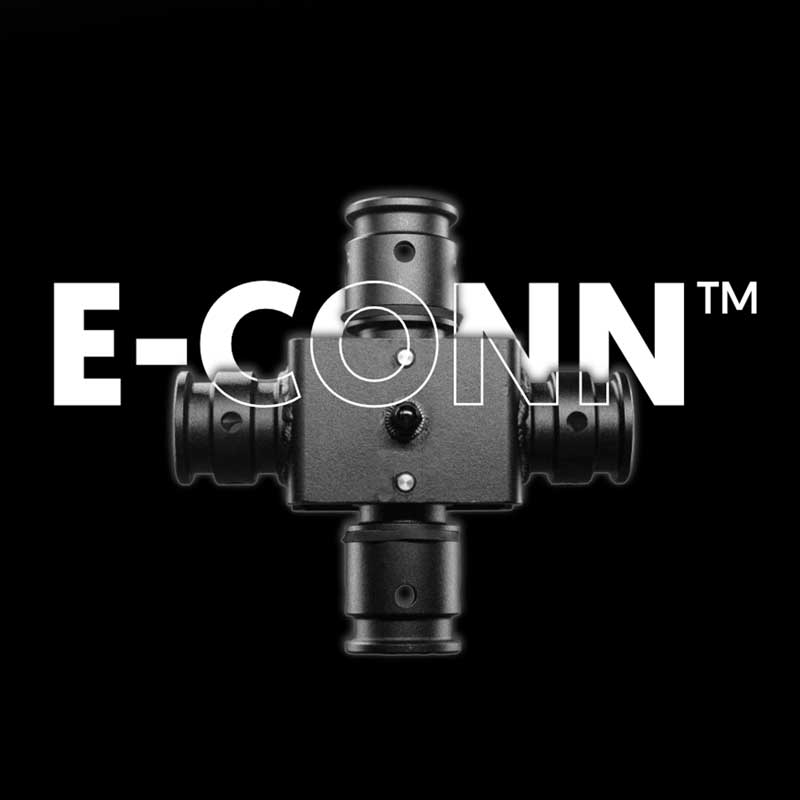

E-CONN™ — solid 4-way connector
Fits P2 EVO™ and EVO ELEMENT™
Two adjustable arms (LOCK ON 60° / 90°)
See EVO ELEMENT in Action
Technical specification
Dimensions
866 x 205 x 189 mm (34.09 x 8.07 x 7.44 in)
Weight
5.2 kg (11.46 lbs)
Rigging
2 × 12 mm (1/2 in) holes for clamp on back | Base (not included) | Hanging adaptor (included) with 12 mm (1/2 in) hole for clamp
Mounting position
Any
Input voltage
100-240V 50Hz/60Hz
Power consumption
max 240W
Power connector
PowerCon TRUE1 power through
Light sources
3 × haloLED™ (3 × 60W) | 3 × RGBW glow (3 × 12W)
Color temperature
1600–3200K | RGBW
CRI
>90
Optics
High reflective hammered reflector | Opal diffuser
Control connectors
5 PIN XLR (in & out)
Control features
6 DMX modes (9–39 Ch) | RDM | Macros | W-DMX (optional module)
User interface
High-contrast LCD display | Highlighted buttons
IP rating
IP20
Warranty
24 months
What comes with the EVO ELEMENT
Fixture | 2m power cord (PowerCon TRUE1, no plug) | Hanging adaptor (also for tripod) | User manual
P2 EVO™ compatibility
Height: 2 × EVO ELEMENT™ = 1 × P2 EVO™ | Same pixel sizes | Same light sources | Same accessories
Additional accessories
E-CONN™ (4-way connector, each arm 30° adjustable) | P2 EVO base | P2 EVO height adapter | W-DMX module | Male-male connector | Flight case
