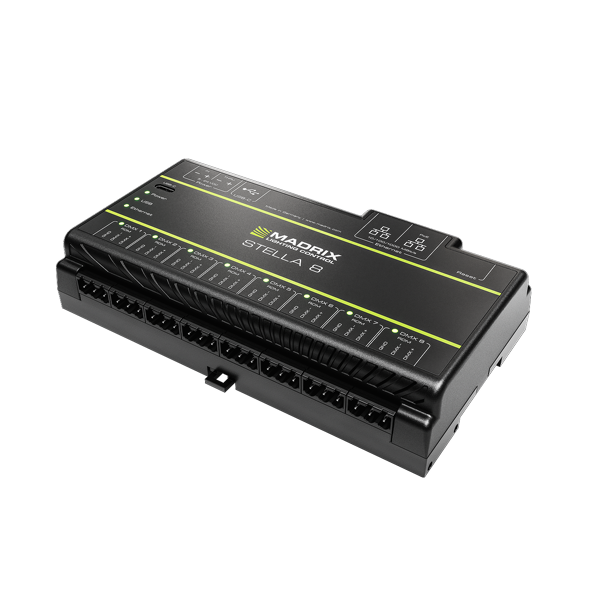

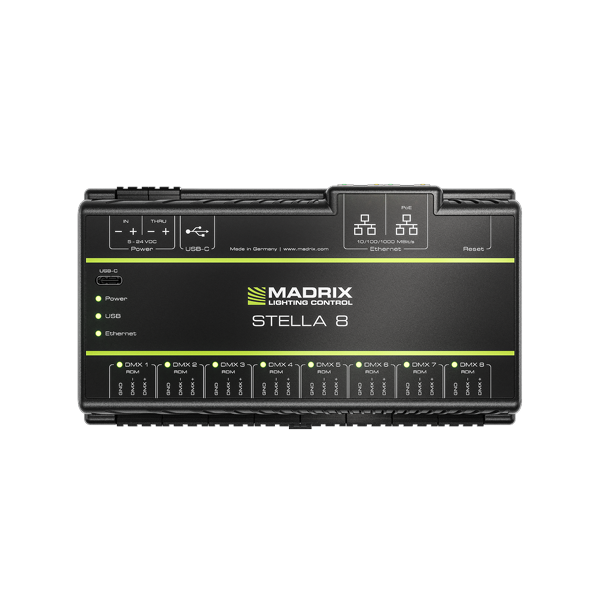

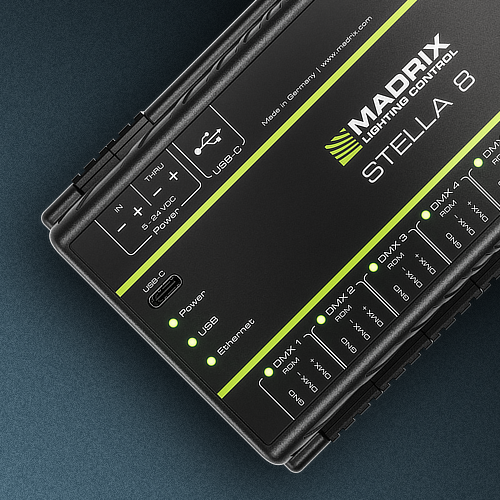

MADRIX STELLA 8
The 8-port flagship controller with RDM support for ultimate control over DMX.
MADRIX STELLA 8 provides extremely useful features and high performance for complete lighting control.
8
DMX ports, input or output per port
1 GBit/s
Network with PoE
8 sources
Real-time HTP/LTP merging
5 years
Limited manufacturer's warranty
Features
High-Quality Ethernet Node – eDMX
MADRIX STELLA 8 provides extremely useful features and high performance for complete lighting control.
8 DMX-OUT – Art-Net To DMX / sACN To DMX
Assign control data to the 8 physical ports for DMX output over 3-pin screw terminals.
8 DMX-IN – DMX To Art-Net / DMX To sACN
Receive control data as DMX-IN and send it back out as eDMX (Art-Net, sACN, or both). Each of the 8 ports can automatically or manually be set to receive input.
Customizable Booster / Merger / Splitter
Easily refresh, combine, or duplicate incoming signals.
Ultimate Real-Time Merging
Combine data streams, directly processed with 0 delay, to create a single output signal via a highly adaptable system with automatic or manual HTP/LTP merging from up to 8 sources.
1 GBit/s Network & PoE – Power Over Ethernet
Simply deliver power to the device over Ethernet.
Seamless Integration Of Art-Net & RDM
RDM is fully supported over Art-Net, including ArtRdm, all other required packets, and full and continued discovery of RDM devices. Use MADRIX STELLA 8 and MADRIX RADAR together for additional benefits.
Connectivity & in the box
8x DMX-IN/OUT (via pluggable screw terminals)
2x RJ45 Ethernet ports (incl. 1x PoE)
2x USB-C ports
2x Power (via pluggable screw terminal, incl. 1x IN and 1x THRU)
In the box: 1x MADRIX STELLA 8
1x set of pluggable screw terminals (8x 3-pin and 2x 2-pin)
2x wall-mount brackets
1x technical manual / quick start guide
Technical specification
Supply of power
A) DC 5 V – 24 V over 2-pin, pluggable screw terminal incl. power daisy-chain (1x IN, 1x THRU), B) 5 V USB (2x USB-C), C) PoE (PoE 802.3af-2003) (1x Ethernet Right); Power backups are possible
Power consumption
≤ 5 W (1,000 mA) during normal operation (1.6 A max. fused)
Network protocols
Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)
Other protocols
RDM (DMX512 Remote Device Management & Art-Net ArtRdm), syslog
RDM role
A) Transmits commands and requests to RDM Responders and back (Art-Net Node / RDM Controller), B) Acts on commands and replies to requests with its own status and sensor data via ArtRdm (RDM Responder)
RDM responder count
170 RDM Responders max. can be discovered per port
DMX512
8x 512 DMX channels, input or output selectable per port
Ports
8x ports (via 8x 3-pin, pluggable screw terminals)
Ethernet
2x RJ45, Auto MDI-X, daisy-chain support, 1000/100/10 MBit/s (= 1 GBit/s), Network over USB (Virtual Link)
Ethernet switch
Lookup Table (ALU) for 4,096 unicast MAC addresses
USB
2x ports, USB 1.1, USB 2.0, type-C female socket
Handling
12 status LEDs (+ 4 network status LEDs)
Case
Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting
Dimensions
86 mm x 156.3 mm x 31.79 mm (3.39″ × 6.15″ × 1.25″) (Length × Width × Height)
Weight
206 g (0.45 lb) | 260 g (0.57 lb) incl. screw terminals and wall mounts
Temperature / humidity
-10 °C to 70 °C (14 °F to 158 °F) (Operating) | -20 °C to 85 °C (-4 °F to 185 °F) (Storage) · 5 % to 80 %, non-condensing (Operating / Storage) · IP20
Certificates / warranty
CE, FCC, UL | 5 years of limited manufacturer's warranty
