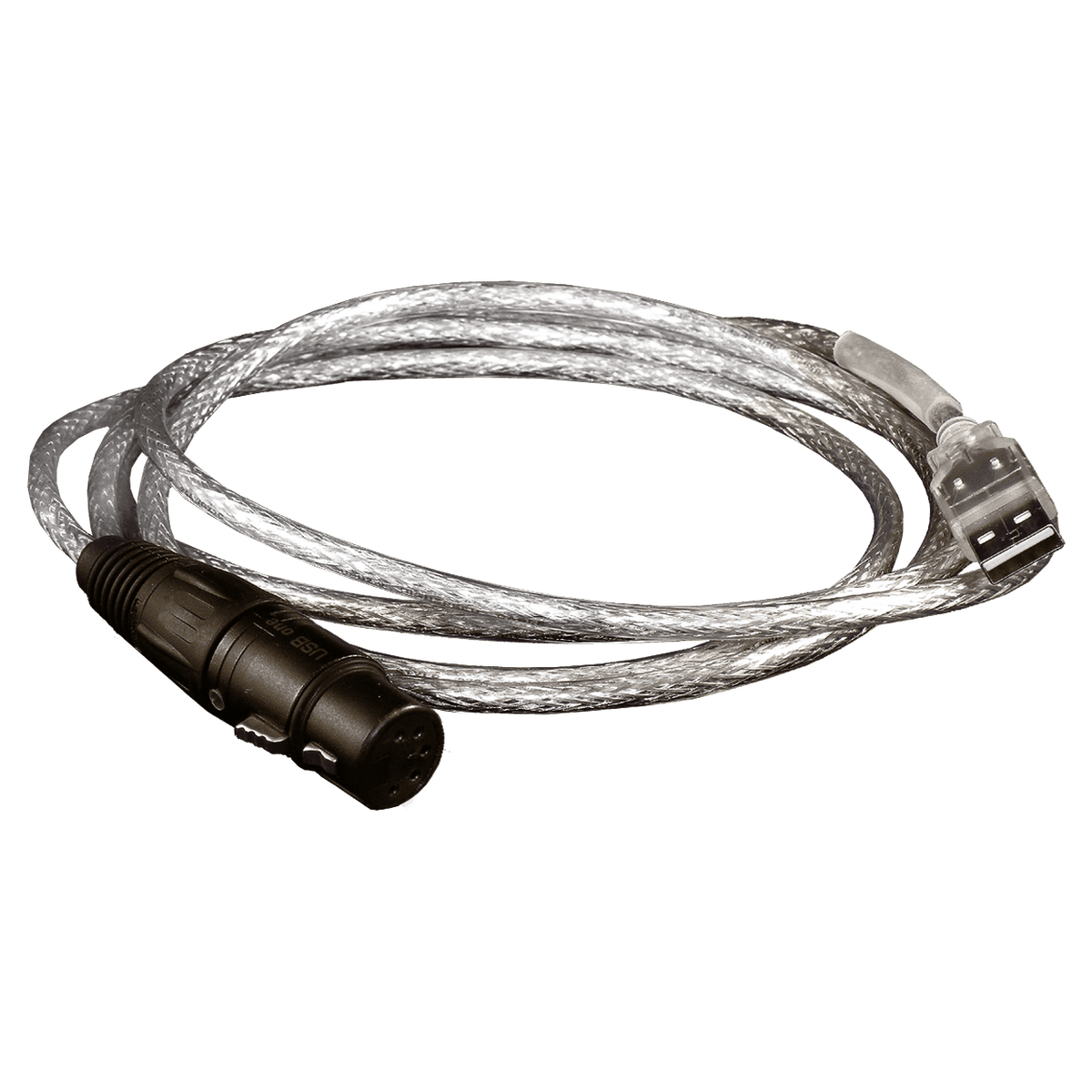

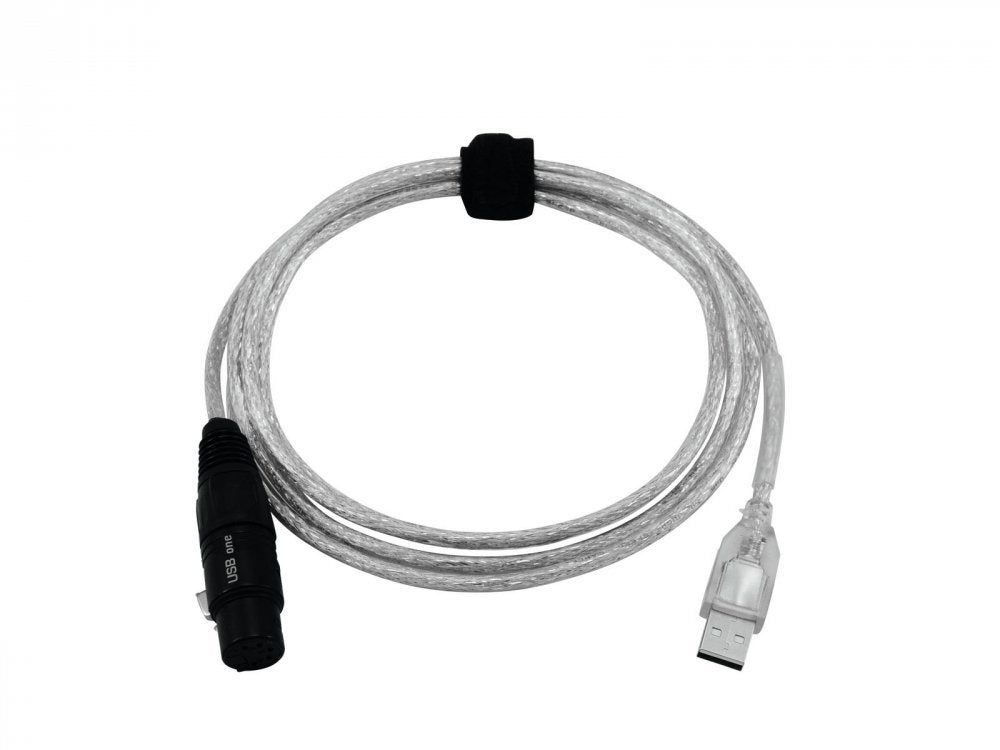

MADRIX USB ONE
One of the smallest USB interfaces for DMX output or input.
The MADRIX USB ONE allows you to control 512 DMX channels using MADRIX 5. Mainly used for DMX input, an additional MADRIX KEY (a software license) is required for DMX output.
512
DMX channels, input or output
480 MBit/s
USB 2.0 maximum speed
60
Devices per USB host controller
5 years
Limited manufacturer's warranty
Features
DMX-IN/OUT With 5-Pin NEUTRIK XLR Port
This device allows you to send or receive DMX data using 512 DMX channels. A male to male 3-pin or 5-pin XLR Gender Changer is required for DMX-IN.
USB 2.0 Standard
The USB 2.0 standard is fully supported to allow for a higher maximum speed of 480 MBit/s.
Power Over USB
The interface is powered directly via the USB port and does not need an additional power supply.
High Quality
The USB ONE represents high quality made in Germany and is very reliable.
Hot Swapping & Plug and Play
Devices can be connected to and disconnected from the computer during use and without a reboot.
Remote Control
MADRIX 5 can be controlled remotely using the implemented DMX-IN functions.
Frame Rate Stability
Up to 60 devices can be connected to a USB host controller without having any frame rate problems. (60 DMX512 interfaces amount to 30,720 DMX channels).
Active USB
Please connect every USB ONE to an active USB 2.0 port or use a USB 2.0 hub with a power supply.
Connectivity
Plug it into a USB 2.0 port and it is powered and ready for DMX.
Ports & sockets
1x DMX512 port (5-pin XLR, female, NEUTRIK)
1x USB port (USB 2.0, type-A male plug, 2 m cable)
Power over USB (DC 5 V, 500 mA)
Technical specification
Supply of power
DC 5 V, 500 mA, Power over USB
DMX512
512 DMX channels, input or output
DMX512 port
5-pin, XLR, female, NEUTRIK
USB
1x port, USB 2.0, type-A male plug, 2 m cable
Weight
105 g
Temperature range
10 °C to 50 °C (Operating) | -10 °C to 70 °C (Storage)
IP rating
IP20
Certificates / warranty
CE, EAC, FCC, RoHS | 5 years of limited manufacturer's warranty
